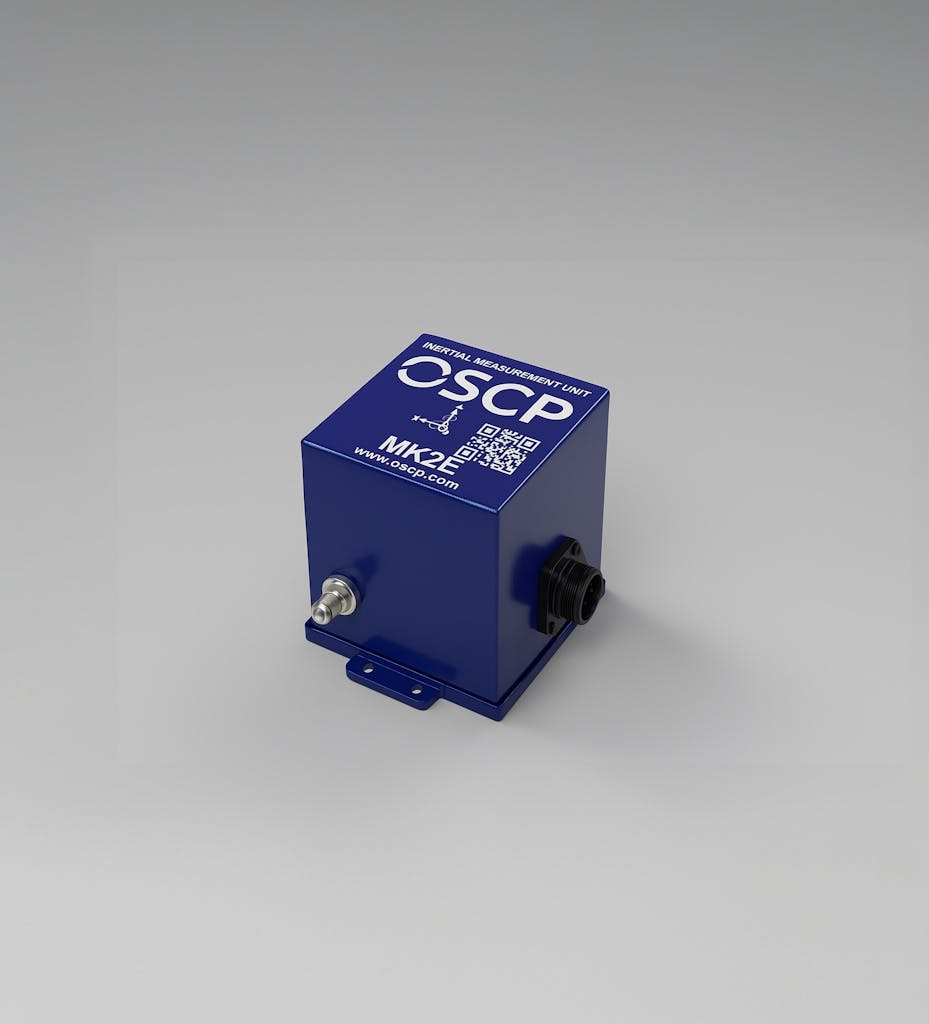

An advanced IMU combining optical gyroscope technology with accelerometers, magnetometer, inclinometer, and GNSS for enhanced and precise navigation.
OSCP’s MK2E is a high-performance IMU designed for demanding applications, including autonomous heavy machinery, precision agriculture, construction, aerospace, defense, UAVs, marine navigation, and health monitoring of machinery.
The optical gyroscope enhances stability, making our product exceptionally resilient to challenges such as thermal drift, mechanical vibrations, and EMI, ensuring precise inertial sensing in real-world conditions.
| Gyroscopes | |
|---|---|
| Dynamic Range | ± 500 °/s |
| In-Run Bias Stability | 0.5 °/hr |
| Angle Random Walk | < 0.07 °/√hr |
| Accelerometers | |
| Dynamic Range | ± 8 g |
| In-Run Bias Stability | < 30 µg |
| Velocity Random Walk | 0.01 m/sec/√hr |
| Magnetometers | |
| Dynamic Range | ± 8 G |
| Inclinometers | |
| Dynamic Range | ± 0.5 g, ± 1 g, ± 2 g, ± 3 g |
| GNSS (Optional) | |
| Constellations (up to 4 concurrent) | BeiDou, Galileo, GLONASS, GPS |
| Communications | |
| Protocol | RS-422, UART |
| Output Data Rate | Up to 1000 Hz |
| Mechanical | |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Rating | IP67 |
| Dimensions | 62 x 59 x 75 mm |
| Weight | < 300 g |
| Electrical | |
| Operating Voltage | 12 V to 30 V |
| Power Consumption | 2 W |
