Our most compact 11-DOF IMU, featuring redundant gyroscopes, accelerometers, magnetometer, inclinometer, and support up to four GNSS for reliable navigation.

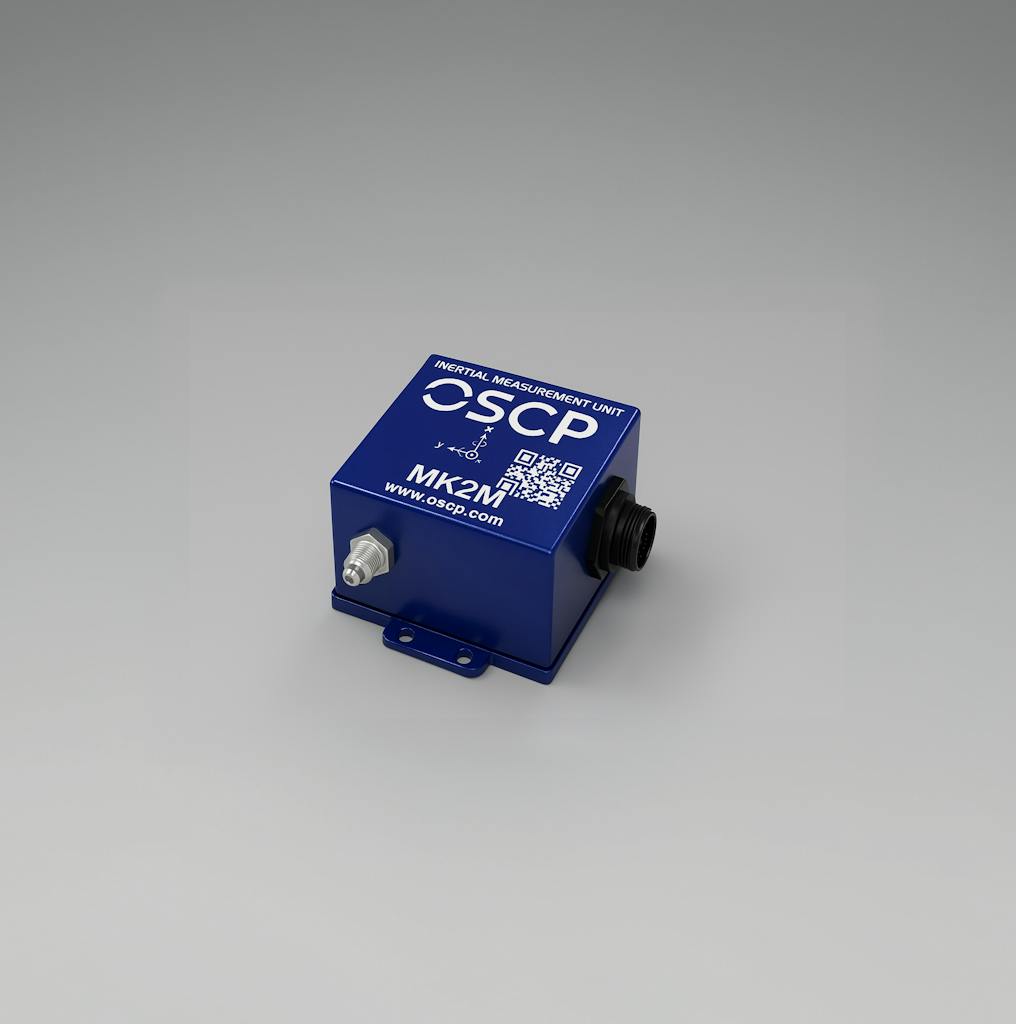

OSCP’s MK2M is a compact, high-performance IMU designed for small drones, robotics, autonomous trains, and geospatial mapping applications. Featuring redundant gyroscopes, 3-axis accelerometers, 3-axis magnetometers, and 2-axis inclinometers, MK2M delivers reliable inertial sensing.
Its redundant gyroscopes enhance fault tolerance and help mitigate sensor drift, ensuring consistent angular rate measurements for precision navigation and control.
| Gyroscopes | |
|---|---|
| Dynamic Range | ± 500 °/s |
| In-Run Bias Stability | 0.5 °/hr |
| Angle Random Walk | 0.07 °/√hr |
| Accelerometers | |
| Dynamic Range | ± 8 g |
| In-Run Bias Stability | < 5 µg |
| Velocity Random Walk | 0.01 m/sec/√hr |
| Magnetometers | |
| Dynamic Range | ± 8 G |
| Inclinometers | |
| Dynamic Range | ± 0.5 g, ± 1 g, ± 2 g, ± 3 g |
| GNSS (Optional) | |
| Constellations (up to 4 concurrent) | BeiDou, Galileo, GLONASS, GPS |
| Communications | |
| Protocol | RS-422, UART |
| Output Data Rate | Up to 1000 Hz |
| Mechanical | |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Rating | IP67 |
| Dimensions | 62 x 59 x 45 mm |
| Weight | < 250 g |
| Electrical | |
| Operating Voltage | 12 V to 36 V |
| Power Consumption | 1.5 W |
